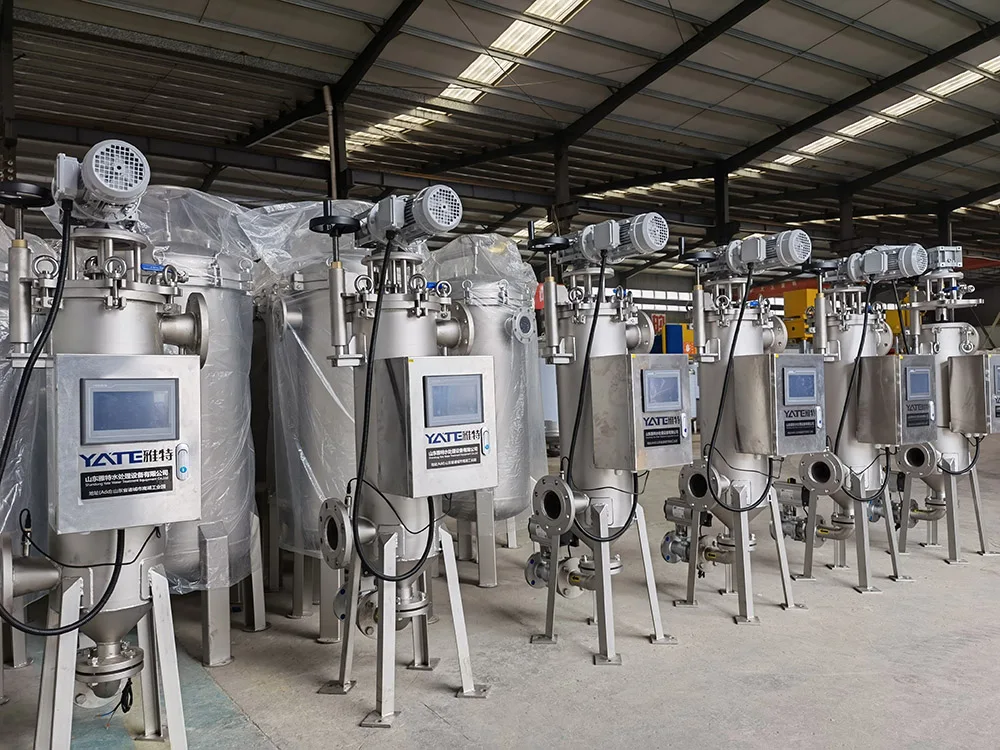

Stainless Steel 304/316 Automatic Self Cleaning Filter with 1.6Mpa Working Pressure and 20-500 μm Filtration Precision for Viscous Liquids

Name: Stainless Steel 304316 Automatic Self Cleaning Filter with 16Mpa Working Pressure and 20500 μm Filtration Precision for Viscous Liquids
Brand: yate
Price: 500 USD

China Stainless Steel 304/316 Automatic Self Cleaning Filter with 1.6Mpa Working Pressure and 20-500 μm Filtration Precision for Viscous Liquids wholesale

Place of Origin : Shandong, China

Brand Name : yate

MOQ : 1

Price : $500-1,025

Weight : 180 kg

Particle Size : customized

Flow Rate : customized

Maximum pressure : customized

Type : Scraper type

Material : Stainless Steel 304/316

Voltage : 380V

Working Pressure : 1.6Mpa

Filter element Material : Stainless Steel 304

Min. Filtration Precision : 20-500 μm

Model : YT-ASCF-273

Scraper Material : PTFE/stainless steel

Filtration area : 0.4 m²

Connection : DN50

Max. Flow : 20 m³/h

Contact Now

Wholesale Industrial Filtration Equipment For Ink Coating /Honey/Syrup/Paint

Fully automatic self cleaning filter

Self cleaning filter have the advantage of filtering viscous liquids

Food and drink: juice, honey, syrup filtration.
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtration.
Automotive: filtration of electrophoretic paint; Filter varnishes and topcoats.
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration.
Fine chemicals: catalyst, fermentation liquid filtration; Filtration of cosmetics raw materials and finished products.graphene, ink filtration
Petrochemical industry: aviation kerosene filtration; Oil and fuel filtration.
Paper industry: pulp, solvent filtration.

Contact: Shirley Ju
Email: yate20201225@163.com
Whatsapp/WeChat/Mob.: + 8615265667398

Stainless Steel 304/316 Automatic Self Cleaning Filter with 1.6Mpa Working Pressure and 20-500 μm Filtration Precision for Viscous Liquids

Products Description

Model	YT-ASCF-273
Filter element material	Stainless steel 304/316
scraper	PTFE/stainless steel
Firltration area(m²)	0.4
Connection	DN50
Max. Flow (m³/h)	20
Working pressure(MPa)	1.0

Advantages

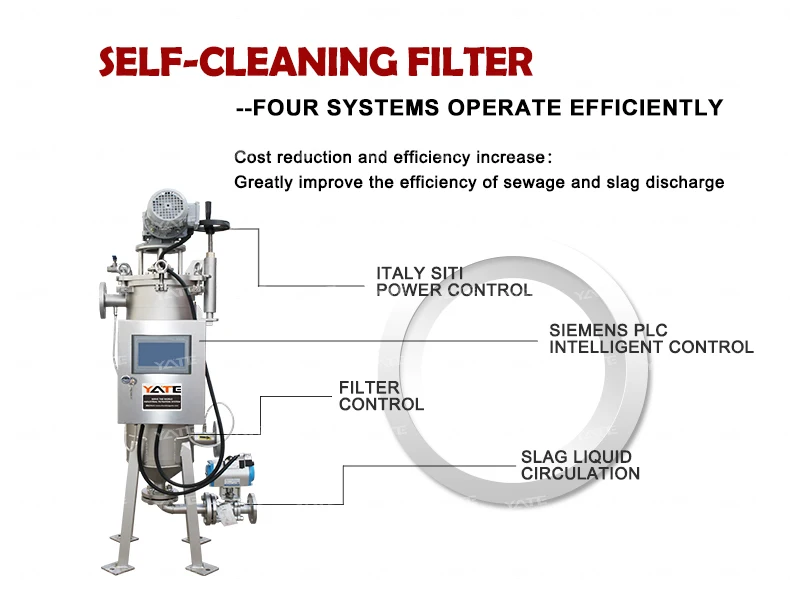

Fully automatic External scraper type self cleaning filter

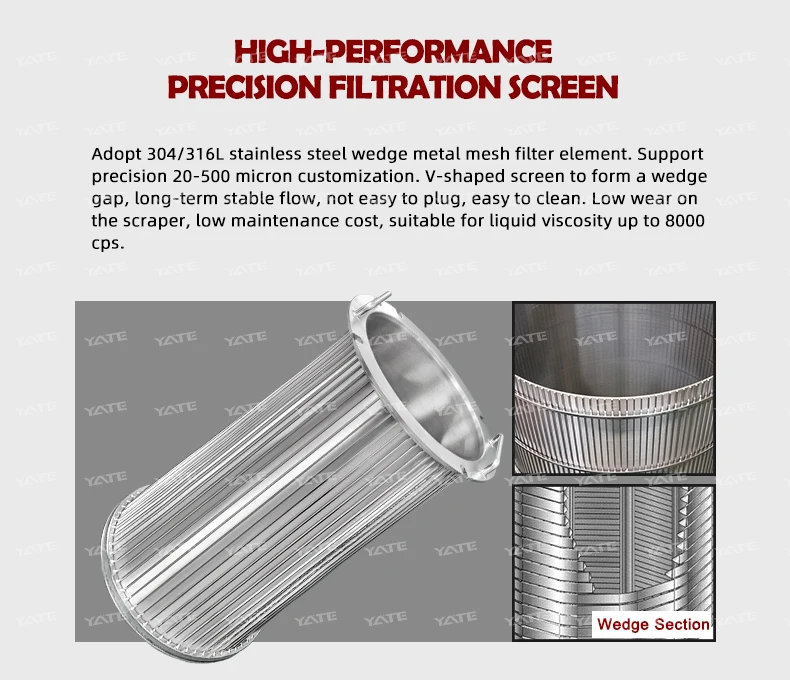

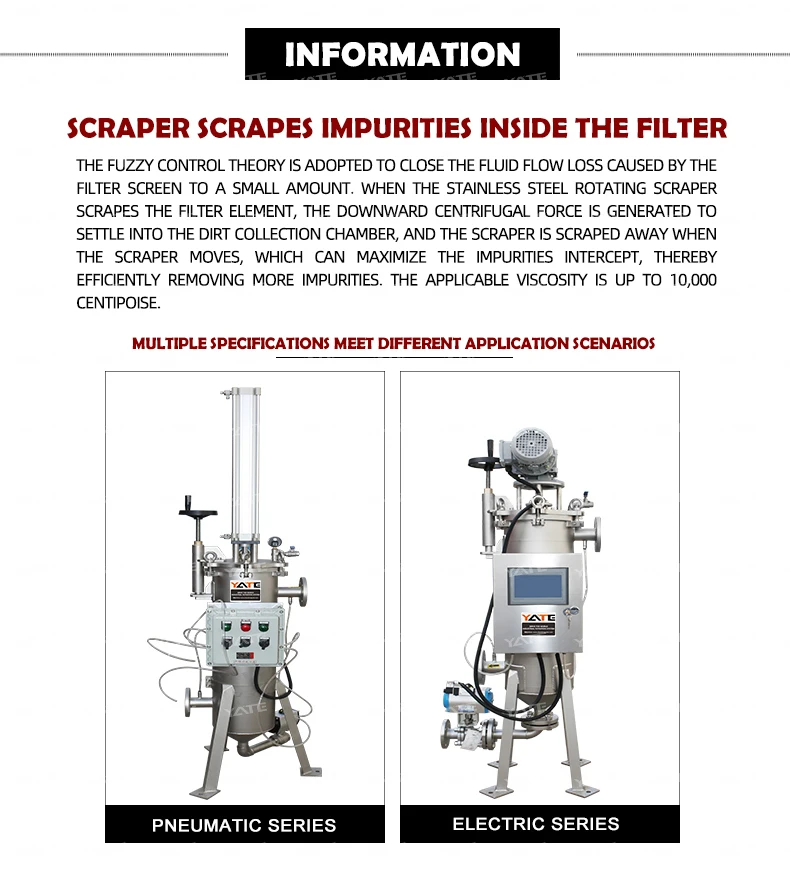

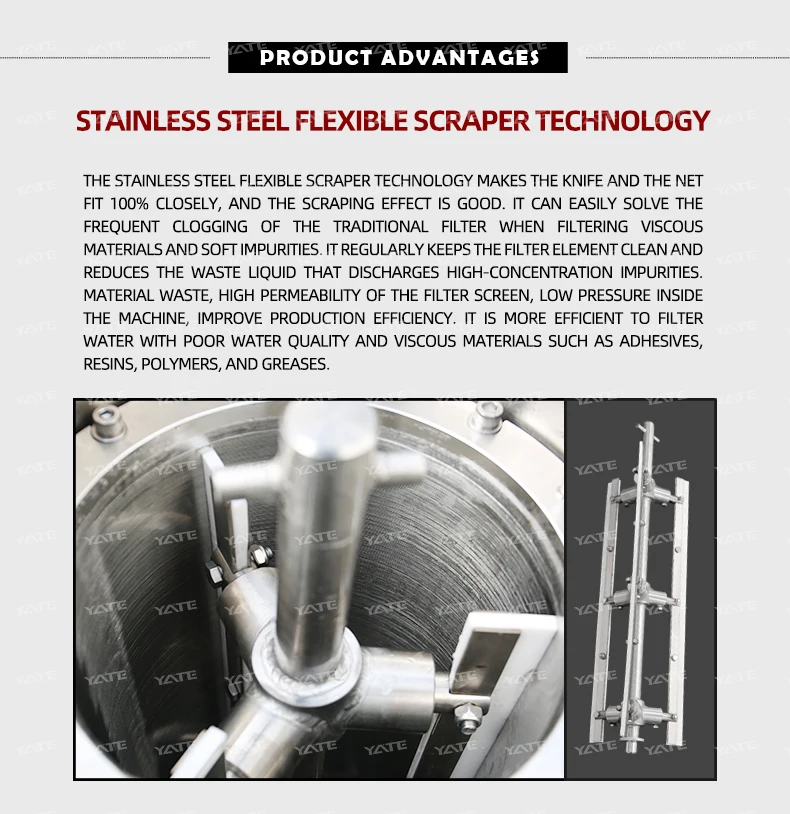

The scraper is made of PTFE and is attached to the outside of the wedge mesh. Automatically remove impurities on the outer surface of filter element by mechanical scraping. When impurities accumulate to a certain extent, the sewage valve will be opened automatically and discharged from the bottom sewage outlet. Single machine continuous online filtration, no filter consumables. Self cleaning filter suitable for high viscosity, high precision soft particle impurities precise filtration.
